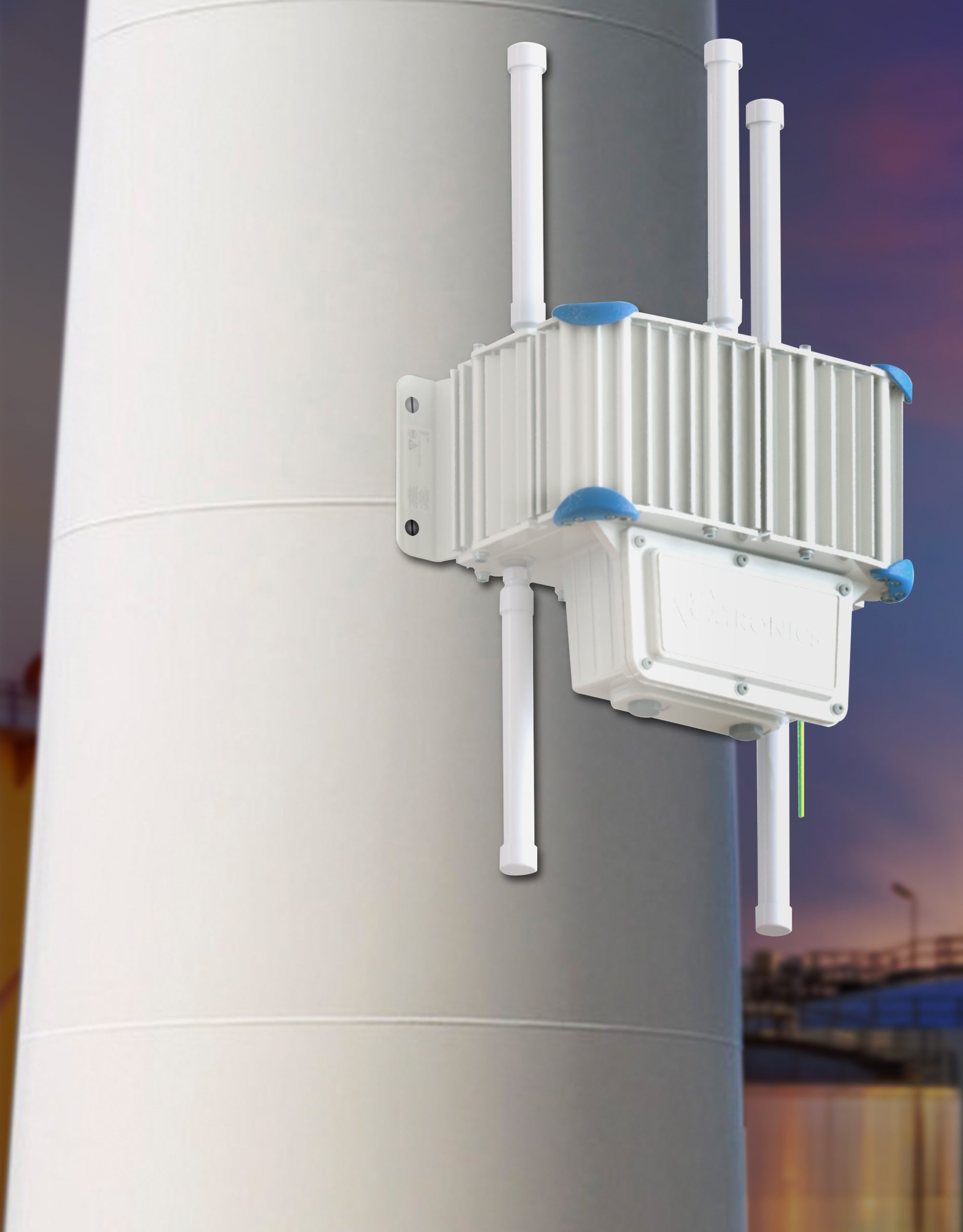

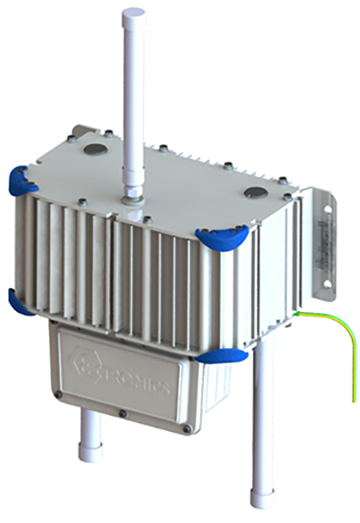

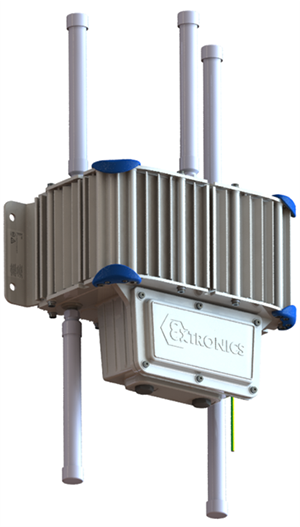

Cassia ATX2000

Hazardous Area Bluetooth Gateway

  • All weather-proof, IP66 and NEMA 4 rated
  • Fully certified for Zone 2, 22 and Division 2 hazardous areas
  • Multiple bi-directional connectivity
  • Integrated TPM chip for end-to-end security
  • Edge computing capabilities to support custom applications
  • Seamless Bluetooth coverage
  • Supports Bluetooth Roaming
  • Easy deployment and management with Cassia’s IoT Access Controller (AC)
  • Bluetooth locationing supported
  • Remote access and control
  • Easy integration with Cassia SDK

ATX2000 Datasheet (PDF – English)

Product Information

  • The Cassia ATX2000 hazardous area Bluetooth gateway is optimized for Industrial IoT
  • Ideal for manufacturing and plant facilities and fully certified for all hazardous areas
  • Supports Power over Ethernet (PoE), AC and DC power sources
  • Extends Bluetooth connectivity up to 400 meters with Bluetooth 4 and up to 1 kilometer for Bluetooth 5 in open space
  • Expands the number of bi-directional pairing devices to 40 Bluetooth low energy devices
  • The ATX2000 can be used as a protocol gateway which translates between Bluetooth protocol and IP protocol. This allows for remote access to Bluetooth low energy devices over the internet
  • Solution providers can connect their proprietary Bluetooth low energy devices to the ATX2000 hazardous area Bluetooth gateway by integrating the Cassia SDK into a native app or server software without requiring any changes to existing end devices
  • Cassia’s IoT Access Controller (AC) enables solution providers to deploy and manage hundreds of ATX2000 Bluetooth gateways and thousands of connected devices from a single easy-to-use user interface.

Technical Specifications

Radio Frequency– The Cassia ATX2000 Bluetooth gateway supports Bluetooth LE 4.0 / 4.1/ 4.2/ 5.0 standards:
–  Bluetooth frequency: 400 to 2.483 GHz

–  Wi-Fi frequency: 2.4GHz and 5GHz ISM band

Bluetooth RF:
– TX power: configurable in 3~19dBm (limited by local regulatory requirements)

– RX sensitivity: -105dBm
– Antenna Gain: default 6dbi omni-directional

Multiple Roles– Supports peripheral, central, broadcaster and observer roles, and plays multiple roles simultaneously

Security Services:

– Supports Bluetooth 4.2 security standards
– TPM (Trusted Platform Module) chip based security
– Advanced military grade 128bit AES encryption

Networking Connections:
– 10/100/BASE-T Ethernet on CAT6: up to 100m

– 1000BASE-LX Multi mode fibre: up to 2km, wavelength 1310nm

– 1000BASE-LX  Single mode: fibre: up to 10km, wavelength 1310nm

– Cellular:  4G-LTE, Cat 4 or Cat 1

Power Interface:
– Options for PoE /POE+ IEEE802af/at and AC or DC power input

Bluetooth Locationing–  The ATX2000 Bluetooth gateway is used in conjunction with Cassia’s IoT Access Controller (AC) to report the location of Bluetooth low energy devices in real time.

Mechanical:

– Dimensions: 293 mm (H) x 388 mm (W) x 220 mm (D)
– Weight: 10 kg / 353 oz

Environmental:
Operating:
– Temperature: -40°C to 60°C (-40°F to 140°F)
– Humidity: 0% to 95% non-condensing
Storage and transportation:
– Temperature: -50°C to +70°C (-58° F to +158° F)
Enclosure material:
– Marine grade copper-free aluminum alloy, epoxy powder coated
Rating:
– IP66 and NEMA 4 rated

Radio Certifications:

Available: FCC (US), IC (Canada), CE (Europe), TELEC (Japan), RCM (Australia & New Zealand), CRC (Colombia), NCC & BSMI (Taiwan), ICASA & NRCS (South Africa), SUBTEL (Chile), IMDA (Singapore), SIRIM (Malaysia), NRTA (Egypt), IFT & NYCE
(Mexico), BQB (Global), CB (Global)

Available in 2024: NBTC (Thailand), SDPPI (Indonesia), PTA (Pakistan)

Warranty– 1-year limited, replacement hardware warranty
