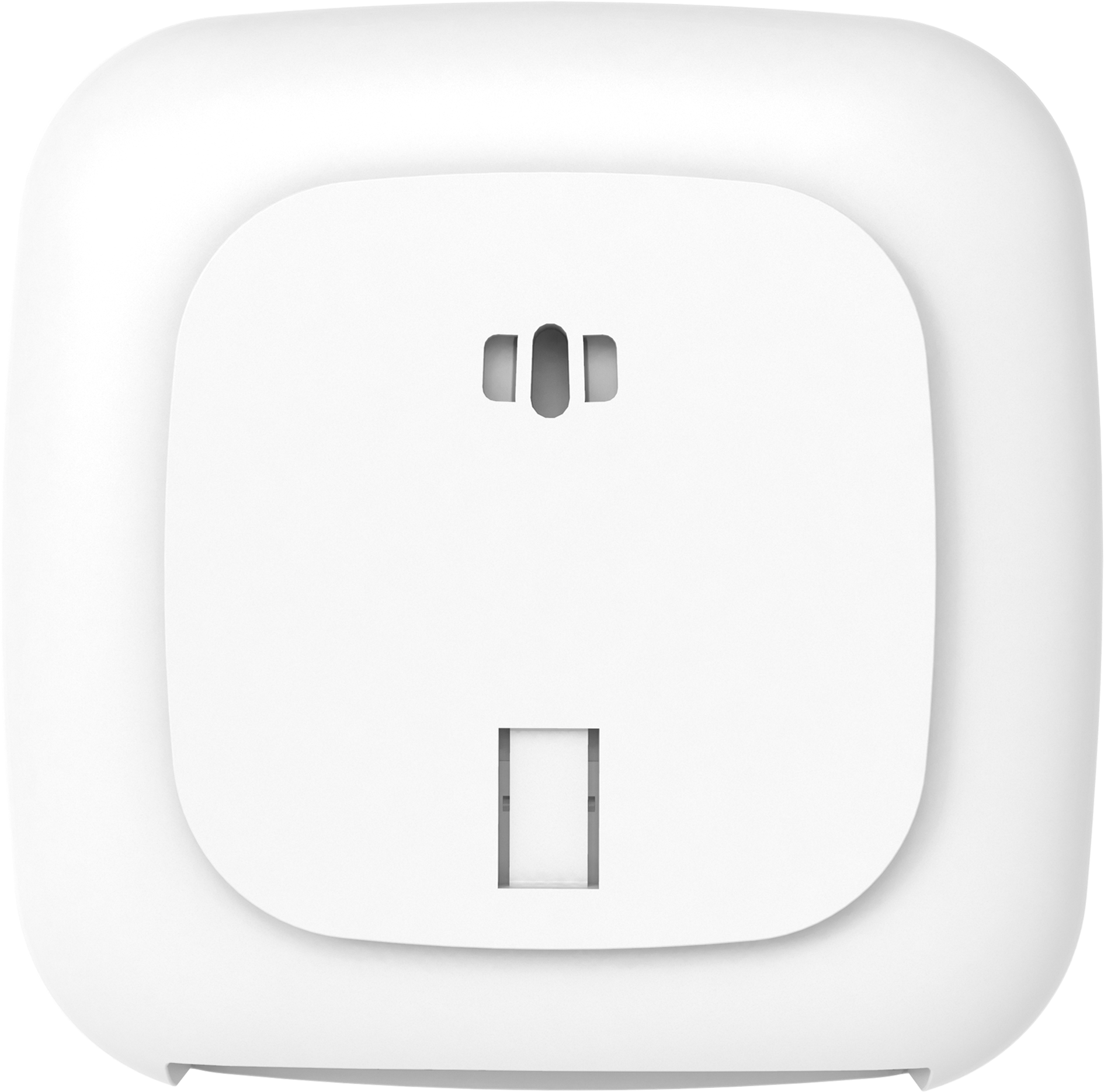

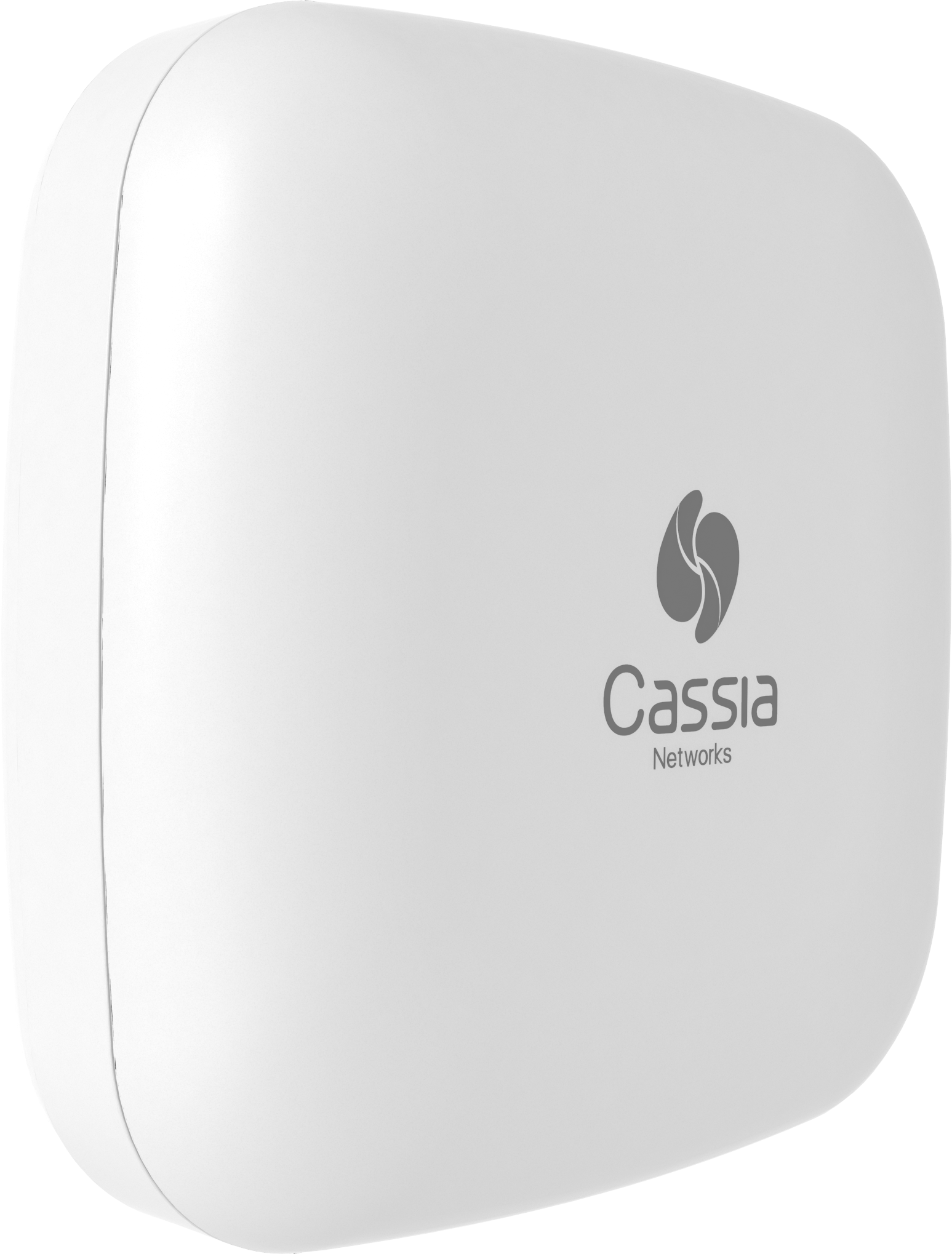

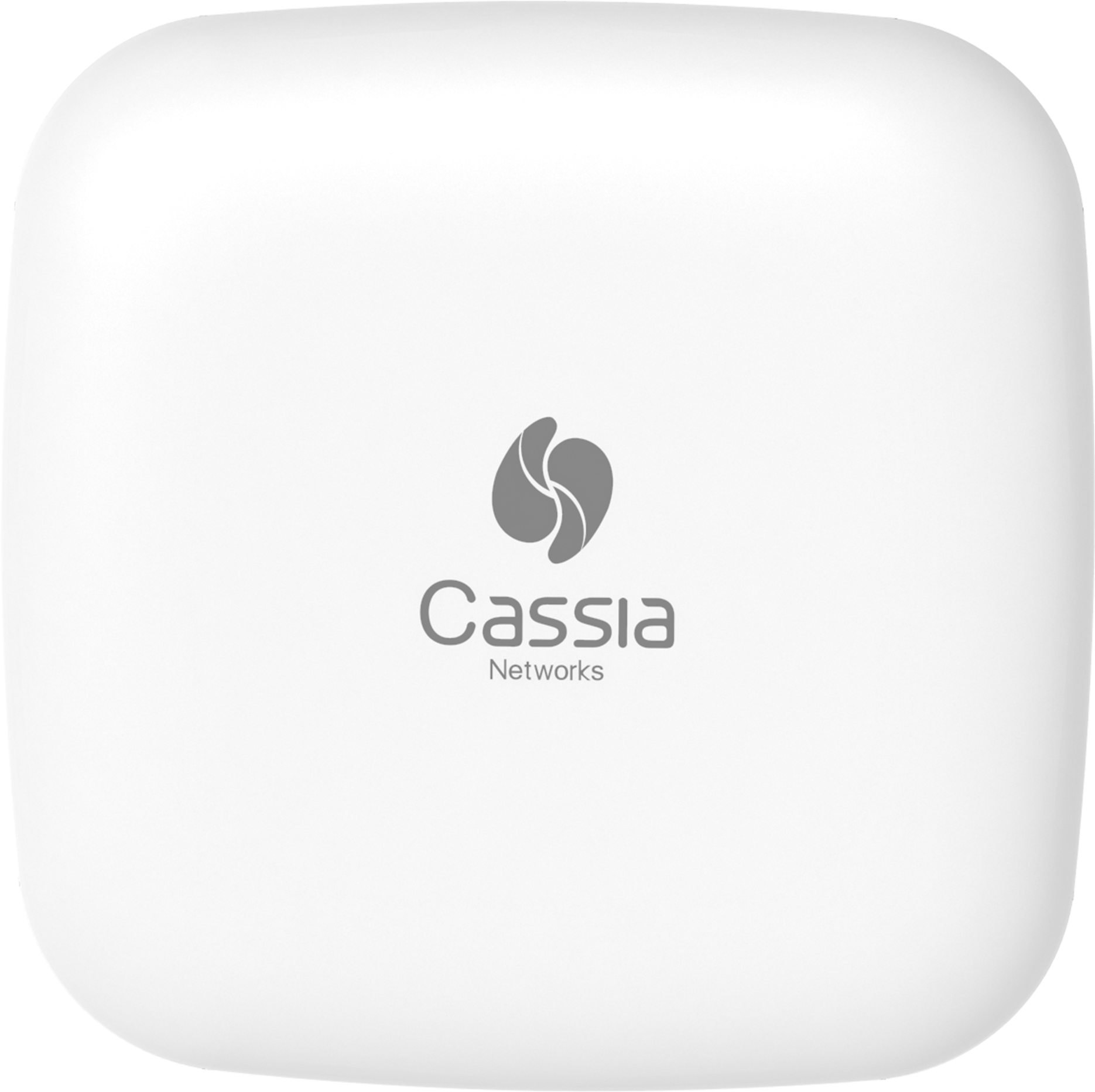

Cassia M2000

A Mini Cellular Bluetooth Gateway (Indoor)

Cassia’s M2000 is a compact, easy to install and use Cellular Bluetooth gateway that provides superior Bluetooth performance. The M2000 supports 4G and Wi-Fi as backhaul. The gateway provides customers with the enterprise-grade security, flexibility, and scalability needed to deploy IoT projects in the most cost-effective method. The M2000, in addition to Cassia’s full product suite of Bluetooth gateways, can be managed by Cassia’s IoT Access Controller (AC), the industry’s most powerful enterprise Bluetooth network management solution.

Like other Cassia enterprise Bluetooth gateways, M2000 also supports Bluetooth roaming and Bluetooth locationing. The M2000 is complementary to Cassia’s other enterprise Bluetooth gateways such as the E1000 and X2000 gateways. The M2000’s unique design with the support of 4G backhaul, GPS and DC 9-36V is especially ideal for situations requiring mobility, quick deployment, and in a moving vehicle.

The M2000 gateway can be used in a variety of industries and applications such as continuous vital sign monitoring in hospitals, telehealth, industrial IoT, smart campus, supply chain management, as well as personnel and asset tracking (in buildings and in vehicles).

Datasheets

CONTACT US TO LEARN MORE

Request a Free Demo (Product Page)
First
Last

Please note, Cassia does not sell Bluetooth Gateways for consumer applications such as home speakers, headphones, laptops or other personal peripherals.

Product Information

Versatile Mini Gateway with Multiple Applications

This mini gateway has multiple capabilities performs varied functions:

  • M2000 can establish up to 10 bidirectional connections to Bluetooth low energy devices simultaneously
  • M2000 can scan hundreds of Bluetooth devices and supports Cassia’s PureScanTM Mode to offer the best scan performance in high noise environments with a large number of Bluetooth devices
  • M2000’s communication range is up to 150 meters with a Bluetooth 4.x device in an open space line of sight, or more with a Bluetooth 5.0 device
  • Cassia IoT AC remotely manages M2000 deployed on a large-scale
  • M2000’s configuration and firmware upgrade can be completed using the Cassia IoT AC or a local console page through Wi-Fi hotspot
  • Designed for various indoor applications, hospital, offices, schools, and transportation vehicles
  • Attaches to a celing or a wall with an included mounting kit, or placement on a shelf or counter space
  • Existing certifications: FCC (USA), IC (Canada), CE (EU), TELEC (Japan), JATE (Japan), RoHS (EU), REACH (EU), CB, BQB. Further certifications can be provided upon request.

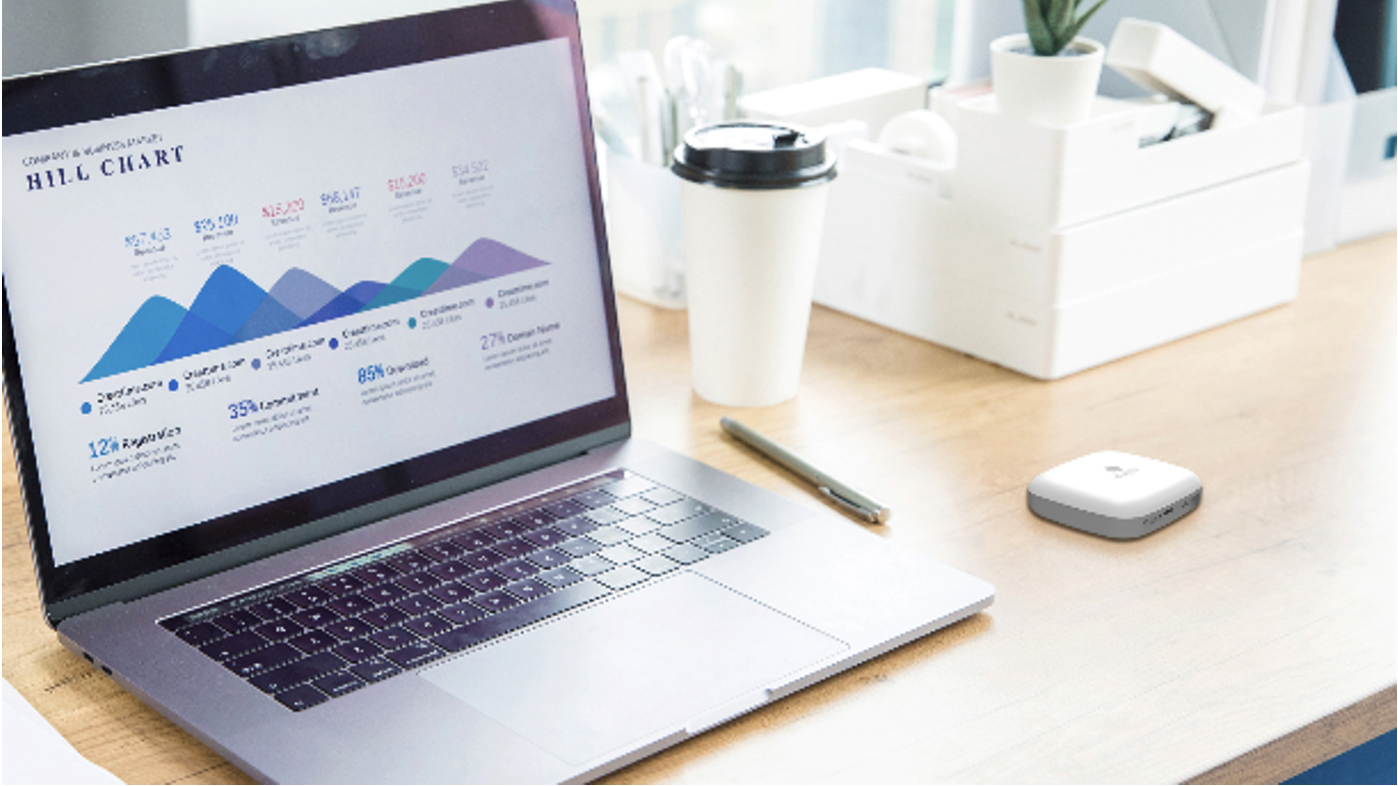

Application Images

M2000
M2000

Technical Specifications

Cellular Backhaul

  • Cellular technology: CAT-M1 / NB-IoT
  • Max data rates:
    • AT M1: 588 kbps (DL) / 1119 kbps (UL)
    • CAT NB2: 127 kbps (DL)/ 158.5 kbps (UL)
    • CAT NB1: 32 kbps (DL)/ 70 kbps (UL)
  • Frequency:
    • CAT M1: Band 1/ 2/ 3/ 4/ 5/ 8/ 12/ 13/ 18/ 19/ 20/ 25/ 26/ 27/ 28/ 66/ 85
    • CAT NB: Band 1/ 2/ 3/ 4/ 5/ 8/ 12/ 13/ 18/ 19/ 20/ 25/ 28/ 66/ 71/ 85
  • Cellular carrier: global
  • Antenna: integrated

Bluetooth

  • Bluetooth chip: Nordic nRF52833
  • Version: Bluetooth Low Energy 4.x and 5.0. nRF52833 supports Bluetooth Low Energy 5.1
  • Frequency: 2.400 to 2.483 GHz
  • Data rates: up to 2Mbps

Wi-Fi

  • Version: 802.11 b/g/n
  • Frequency: 2.4 GHz
  • Concurrent Wi-Fi hotspot mode for local configuration and Wi-Fi STA (client) mode for backhaul connection
  • Antenna: Integrated

GPS

  • Active GPS with an internal GPS antenna

Security

  • Bluetooth Low Energy 4.2 secure connection
  • Advanced 128-bit AES encryption
  • TLS 1.2 is used for communication between the M2000, AC, and the customer’s IoT server

Environmental

  • Operating temperature: -30°C to +70°C (-22°F to +158°F)
  • Operating humidity: 0% to 90% non-condensing
  • IP rating: IP30 (>2.5mm solid protection, no liquid protection)
